Proto-Vest TW130
DRY BACK WINDOWS OF SUVs
The TW130s’ primary function is to assist in the drying of the back of the vehicle. Utilizing only one 30hp blower, the TW130 is both energy efficient and an effective drying solution. This dryer is usually packaged as a combination unit that can be used with all Proto-Vest dryers.
General Description

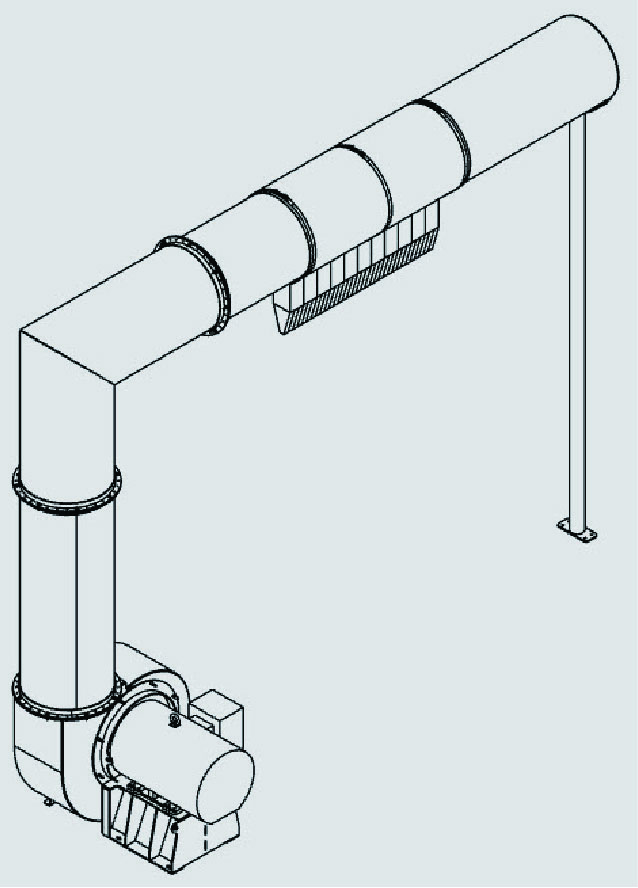

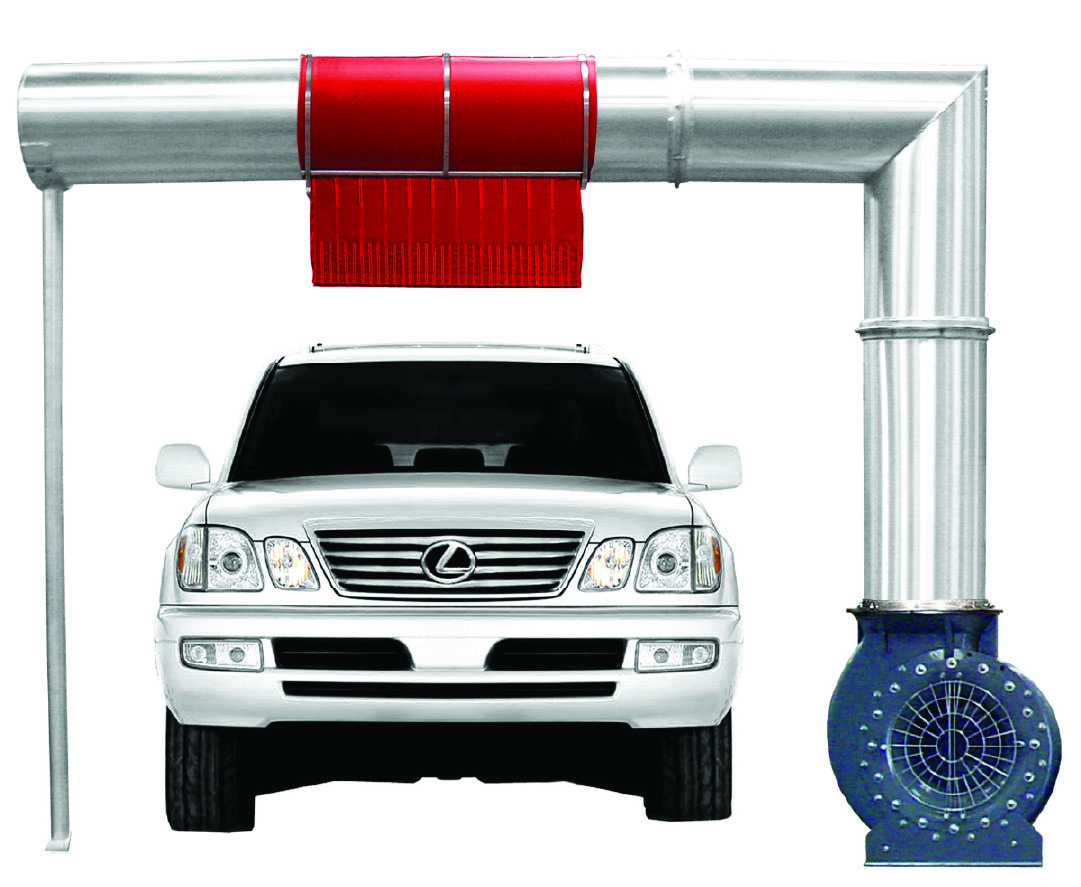

The Proto-Vest TW130 is apart of our modular drying system that is ideal for conveyor operations. This patented design uses one 30hp blower, plenum and a 40” Proto-Duck™ overhead bag. The TW130 air deployment device is adjustable and can be angled towards the rear of the vehicle to effectively dry the backend of Vans and SUVs! In addition this system assists with drying the roof, hood, front and rear windows of all vehicles as they pass under the drying equipment.
The TW130 blower/motor assembly is engineered for both maximum efficiency and cost effectiveness. It can also be equipped with the optional Proto-Vest Silencer Package™ to reduce noise emissions.
Proto-Vest’s stringent standards in material selection for its dryers results in extended equipment life and reduced maintenance. The TW130 blower assembly is manufactured from high strength powder coated steel, its plenum is made from 5052-H32 aluminum, and its bag is produced from durable Proto-Duck™ material to resist corrosion and tearing.
Features & Benefits
- Used Primarily for Conveyor Operations
- First or Last Dryer in a Complete System
- Adjustable Bag Angles
- One 30 Horse Power Motor
- Touch Free Drying
- Low Maintenance
Equipment Options
Silencer Package
- Reduce decibel levels generated by the dryer to ensure a pleasant wash environment
Stainless Blower Package
- All stainless steel blower assembly
Motor starter options available:
- DOL Starter
- Soft start
- VFD
Motor Specifications
- 30hp, 3600 RPM's
- 208-230/460 volts
- 1.15 service factor
- Framer: 286TS
- 3 Phase
- (TEFC) Totally enclosed, fan-cooled
Ready to Order
If you are ready to purchase the Proto-Vest TW130 Top and Rear Surface Drying System , click the buttons below to purchase from J.E. Adams or request a quote.
